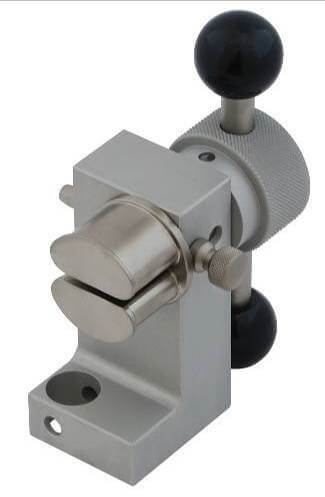

TA252-40-25 Ribbon Grips (20kN)

Description

TA252-40-25 Ribbon Grips can be used to test thin narrow webbing, straps, and ribbons. The sample is wrapped around a self-tightening roller to minimize its slippage.

• Max. load: 20 kN
• Max. sample thickness: 2.5 mm (0.098 in)
• Max. sample width: 25 mm (0.98 in)
• Min. sample length: 550 mm (21.7 in)
• Coupling: Af159 or Af20
• Further couplings on request Body: Anodized aluminium
• Roller: 40 mm (1.57 in) Ø; steel, nickel-plated
• Temperature range: 0 … +70°C
• Further temperature ranges on request Weight: 1.2 kg per grip
• Scope of delivery: 1 pair of grips

TA 252 Grips are available for use on the Vantage NX and can be adapted to fit other materials testing machines.
