Description

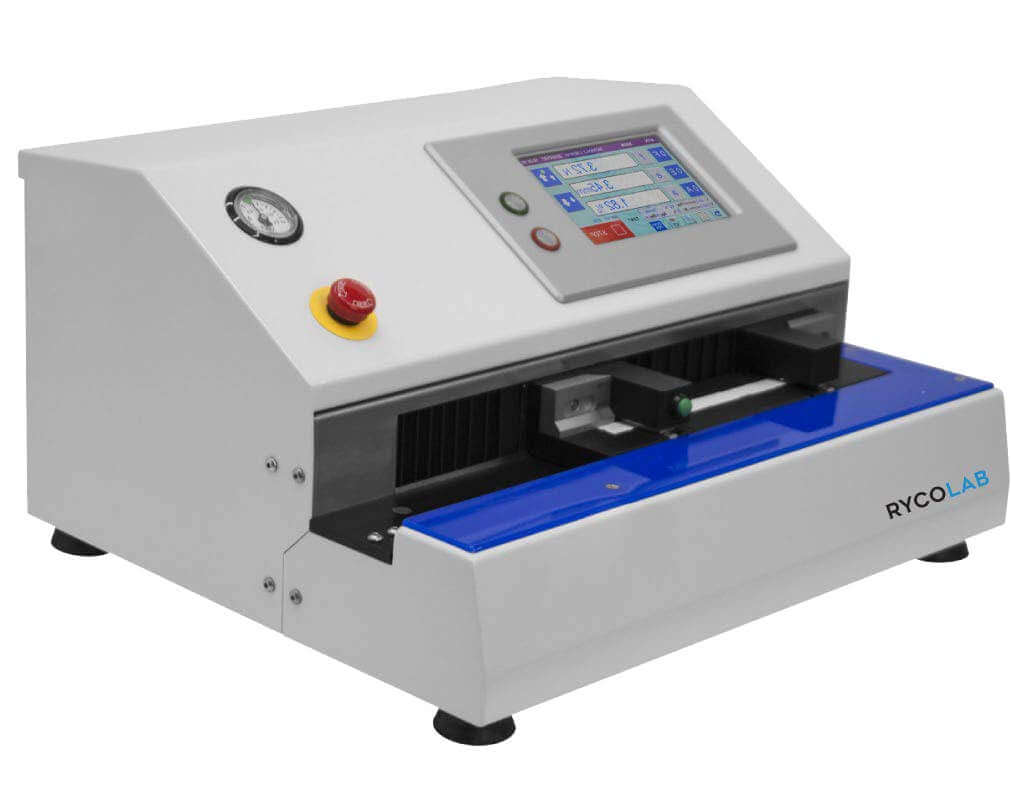

The Rycolab Hortiontal Tensile Machine is used to determination of tensile resistance in dry or wet state, elongation and tensile energy absorption (TEA) in paper or tissue.
This device is delivered with a built-in touch screen and controlled by an industrial computer. All parts are built into a sturdy frame. Measuring range up to 1000N with an accuracy of ±1% of the displayed value. Automatic test cycle with break detection and after break automatic return to starting position. Easy to select test on the display.

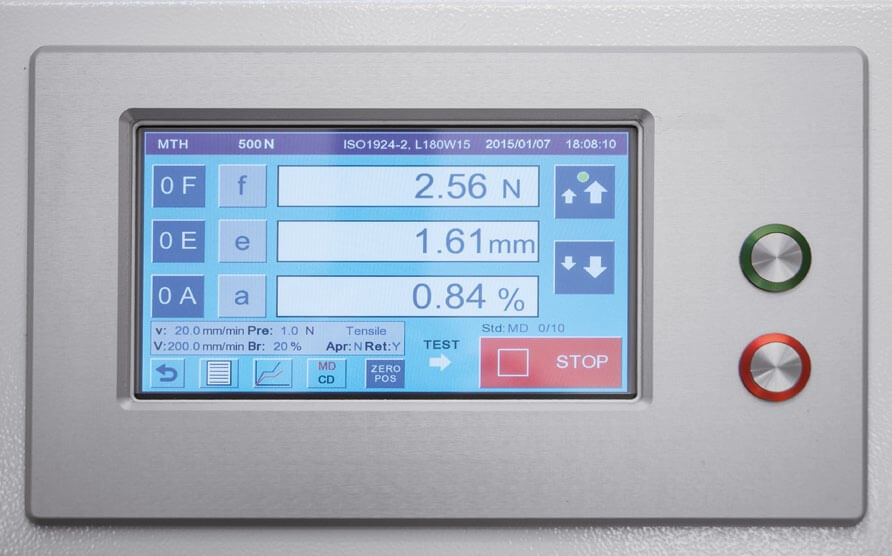

The user chooses the test to be performed on the touch screen. The clamps automatically drive into position. Now the sample support is placed into the space between the clamps and the sample is placed. The sample is automatically detected and the clamps close. According to the test the sample is either watered for the pre-set time, pulled out of the water and stretched till it breaks or it is directly stretched. The figures, curves, statistics with max, min, mean as well as the standard deviation are shown on the touch screen and can be printed. The clamps automatically open and return into start position after testing.

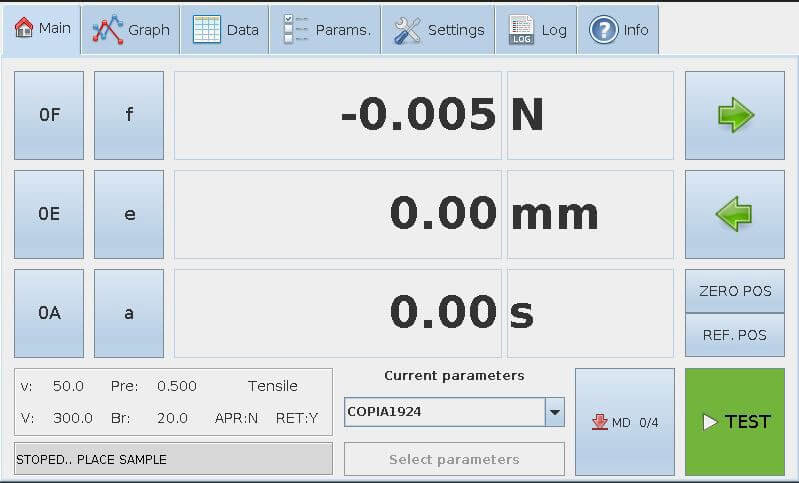

The software comes with the pre-installed tests as they are described in the standards. Company-specific tests can be set as well. All the parameters like testing speed, testing length, breaking- and pre-load levels can be adjusted individually. The software can be set into different languages.
Applicable Standards:Â Â
ISO 1924-2, UNE-EN ISO12625-4/5, TAPPI T456, T494, PAPTAC
