Description

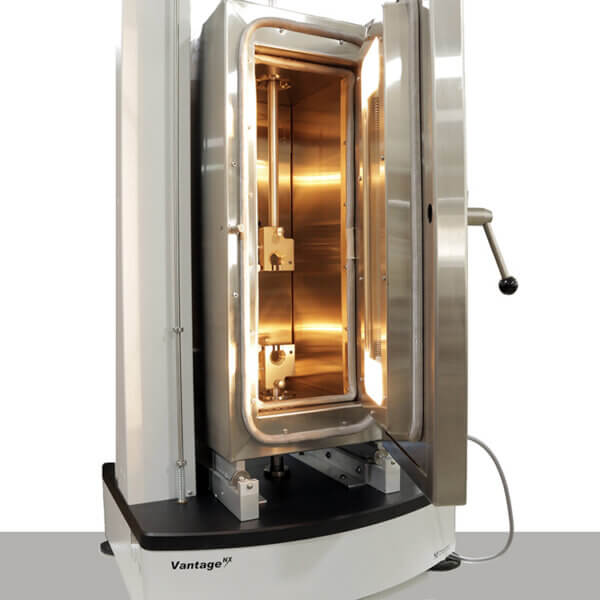

These environmental chambers are designed for use with Thwing-Albert Vantage Series dual-column testing machines.ย A climate-controlled environmental chamber can be configured for hot or cold applications.ย ย
Sample Types Include – plastic film, laminates, textiles, fibers, composites and other substrates.ย
- Material: Stainless steel
- Temperature range: -70ยฐC to +280ยฐC
- Mixing Fan: 1x with ring heating rod, 2300W, 220V
- With magnetic valve for nitrogen cooling
- Door with 4-fold glazing, door heating, and internal lighting
- Temperature Control: 19″ Rack Box, Omron 0.1ยฐC with RS-485
- Includes software for stepwise temperature regulation (up and down)
- Includes guide rails to move chamber back, 1200mm long, feet 800mm long, standard connecting plate
Optional Wedge System allowing for moving the chamber without dismounting grips.
- 125mm distance window to center for moving back chamber without dismounting the grips.
- 2 bushes Teflon, 50mm inner diameter
- Maximal 280ยฐC
- Must be ordered with the chamber
DIMENSIONS
- Internal: 200 x 230 x 580 mm (W x D x H)
- External: 300 x 280 x 620 mm
- Wall thickness: 50 mm left and right, 70mm top and bottom
- Door: 90 mm
- Back side: 165 mm
- Ports: 50mm (top, bottom)
- Service hole: (Back Side, Bottom): 50 mm
NOTE: Additional sizes and temperature ranges available upon request.
