Description

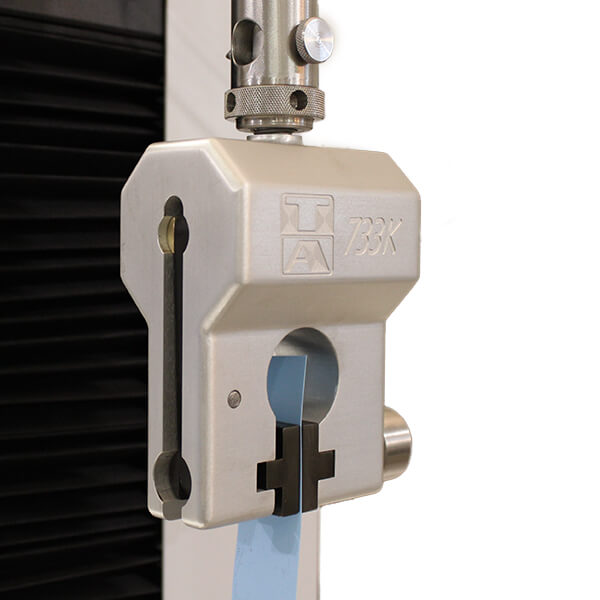

The 733K general purpose tensile grips are an effective solution for clamping sample materials such as pulp handsheets, paper, paperboard, plastic films, flexible packaging, foils, nonwovens, and other sheet materials for tensile testing with a universal testing system like the VantageNX .
General-purpose pneumatic grips offer a 500 N (112 lbf) clamping force. The open-ended design enables the ability to hold samples of varying widths and can be supplied with jaws up to 152.4 mm (6″) wide.
Inserts must be ordered separately (4 jaws are required per set). Additional sizes, line contact, and diamond serrated jaws are available.
Specifications
-
Applicable for pulp handsheets, paper, paperboard, plastic films, flexible packaging, foils, nonwovens
-
Aluminum construction
-
Grip opening is 4.7 mm w/ Smooth or Serrated Jaws
Grip opening is 3.2 mm w/ Rubber Jaws -
Length of a single grip is 135 mm
-
Weight of a single grip is: 650 gm (1.4 lb) without jaws
-
Clamping Force: 500 N (112 lbf)
Jaw Details
- Required with a pair of 733K Grips:
2 stationary jaws
2 moving jaws - Jaw Height: 25.4 mm (1”)
- Jaw Width Options (custom jaws upon request): 25.4 mm (1”) to 152.4 mm (6”)
- Jaw Surface Options: smooth, serrated, diamond serrated, rubber covered, and line contact
