- Densometers are the accepted instruments for measuring porosity, air-permeability or air resistance of sheet-like materials.
- The 4340 combines the ability of a low, standard and high pressure densometer and smoothness tester and provides a reading in seconds.
- An auto-drive mechanism enables the user to program the number of tests and the span they are tested over.
The Model 4340 Automatic Densometer & Smoothness Tester measures the porosity, air-permeability or air resistance of sheet-like materials. It combines the abilities of a low, standard and high pressure tester with a digital timer that provides a reading in seconds.
An auto-drive mechanism, enables you to program the number of tests as well as the span they are tested over. Therefore, a sheet or strip of paper can be analyzed automatically.
Applications
- Porosity and smoothness of paper, textiles, paperboard, films, membranes, filter media, packaging, perforated metals and others.
- Quality control – Air permeability can be a direct representation of the uniformity of material.
- Analyze effects of treatments such as coatings, sizing agents, inks, resins or other additives.
Choice of Outputs
- Porosity:
- Standard Gurley
- Low Pressure Gurley
- High Pressure Gurley
- Sheffield units
- Smoothness:
- Standard Gurley smoothness
- Sheffield units
Features:
- Porosity & smoothness tests

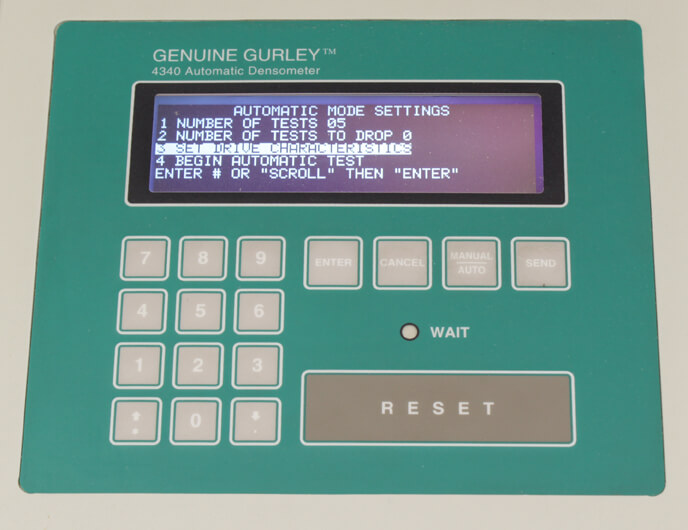

- Automatic & manual test modes
- Output in seconds – improves efficiency
- Programmable auto-drive mechanism
- Interchangeable orifices (1.0 sq. in. standard, 0.25 & 0.1 sq. in. optional)
- RS-232 computer output
